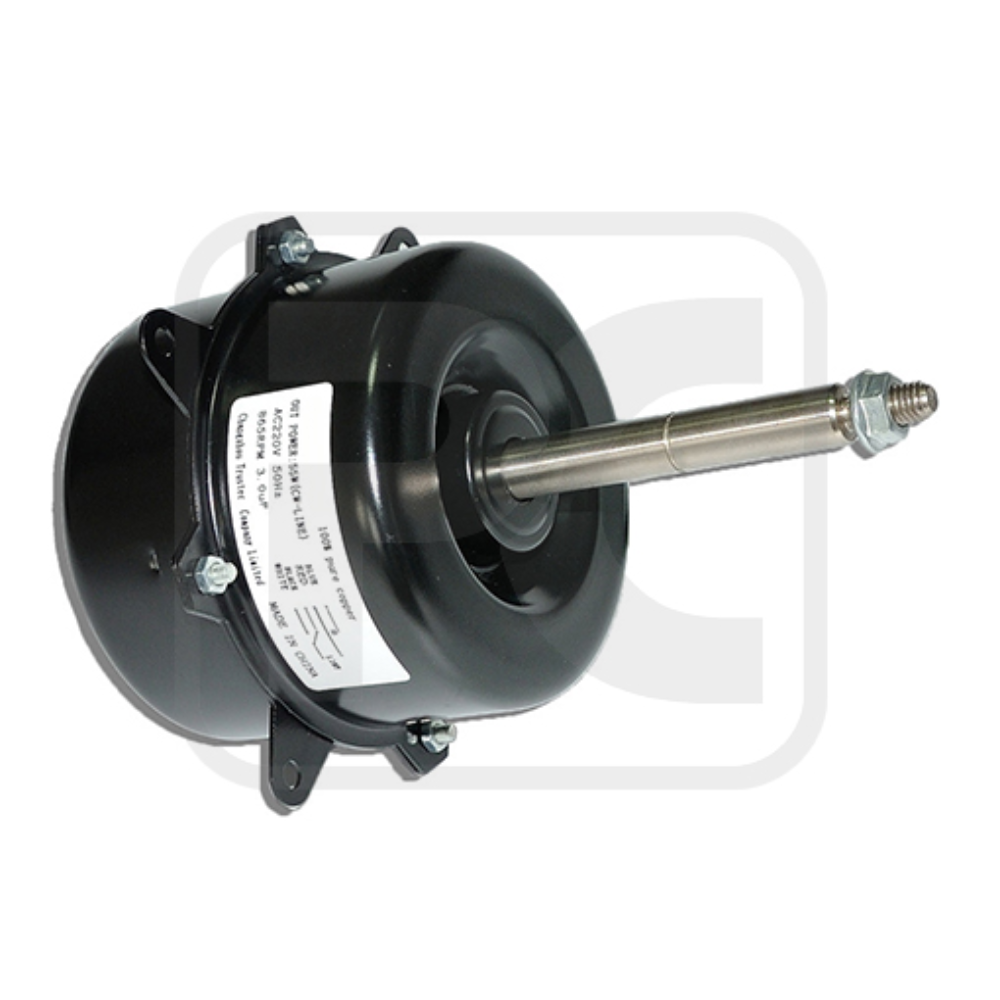

55W Outdoor Fan Motor / Single Phase Asynchronous Motor For Air Conditioner
(0
reviews)
Inhouse product
Price
AED 0.00
/Pc
Share
Top Selling Products
Reviews & Ratings
0
out of 5.0
(0
reviews)
There have been no reviews for this product yet.
Motor Application:
The YDK120 series outdoor fan motor is widely used in split air conditioner outdoor units, as well as other fresh air ventilation systems, also if customized mounting type, the 120 series fan motor can be applied for ceiling type air conditioners.
Product Features:
Bearing: rolling bearing, NSK low noise high-quality material.
Brass terminals plug-in.
Shaft: single shaft, nickel plating treatment.
Enclosure: electrophoretic coating treatment.
Winding: 100% pure copper.
Technical Parameters:
| Model Number | Output Power /W | Voltage /V | Frequency /Hz | Rated Speed /RPM | Rated Current /A |
| YDK95-20-6 | 20 | 220-240 | 50/60 | 830 | 0.25 |
| YDK95-25-6 | 25 | 220-240 | 50/60 | 830 | 0.27 |
| YDK95-30-6 | 30 | 220-240 | 50/60 | 830 | 0.3 |
| YDK95-35-6 | 35 | 220-240 | 50/60 | 800 | 0.33 |
| YDK95-40-6 | 40 | 220-240 | 50/60 | 850 | 0.4 |
| YDK120-50-6 | 50 | 220-240 | 50/60 | 850 | 0.55 |
| YDK120-55-6 | 55 | 220-240 | 50/60 | 850 | 0.57 |
| YDK120-60-6 | 60 | 220-240 | 50/60 | 850 | 0.6 |
| YDK120-70-6 | 70 | 220-240 | 50/60 | 850 | 0.65 |
