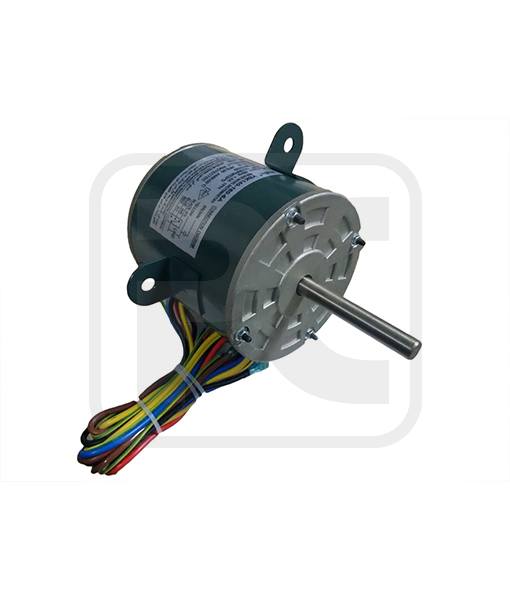

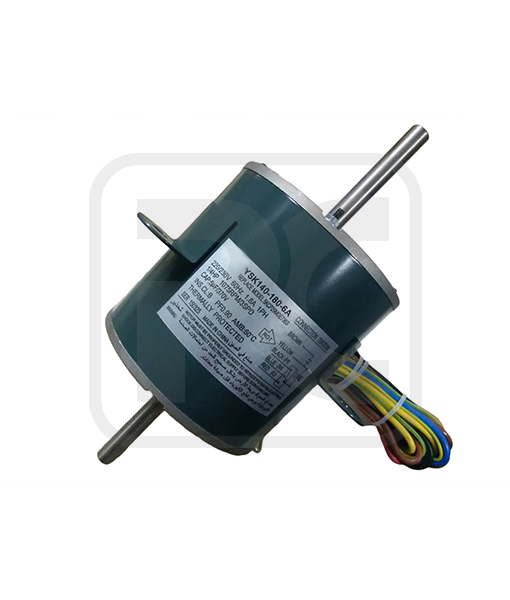

HVAC Blower Motor Replacement, 1/6HP Air Conditioner Condenser Fan Motor
Inhouse product
Reviews & Ratings
Features:
• Reversible plug for easy rotation
• Class F Insulation
• Quick installation
• Energy efficient
• Quiet operation
• Ball bearing
• Automatic overload
• Thermal protection
• Usage: window type air conditioner
• High efficiency, High reliability, little vibration, Low noise Specifications
A. Smooth running
B. Long work times and low temperatures
C. Low noise
D. Steady performance
E. Large loading capacity
Product Applications:
1. window type air conditioner
2. Fresh air ventilation system
3. Air filtration and purification
Parameters:
Note: Listed are representative motors, only for reference, dimensions and parameters can be customized according to customer requirements, OEM/ODM offered.
| Model series | YSK140 |
| Type | Asynchronous Motor |
| Rated Voltage | 115V/208-230V/460V |
| Frequency | 50/60hz |
| Output Power | 1/6HP – 1HP |
| Pole | 4/6 |
| Shaft type | Double |
| Diameter | Steel cover 140mm |
| Efficiency | IE3 |
| Protect Feature | Enclosed |
| Speed | 800-1800 RPM |
| Rotation | CW/CCW |
| Phase | Single-phase |
| Bearing | Ball bearing |
| Certification | CE, ROHS |
